FMS LVD Power Timer - CHP Version

$139.90
The FMS LVD Power Timer switches fused battery power to accessories such as radio equipment, emergency light flashers, computers / printers, relay banks, fuse blocks or other accessories that require power starting with IGN ON, then extended after IGN OFF based on preset run-time extension of 60 minutes for CHP. The integrated LVD Low Voltage Disconnect protection will cease the timed extension if the battery voltage drops below the preset level of 9 volts for longer than 30 seconds. The LVD feature preserves the battery from deep discharge / extends battery life. See details below.
Availability: In stock
SKU: FMSA-EL-PTCHP

Add To Estimate

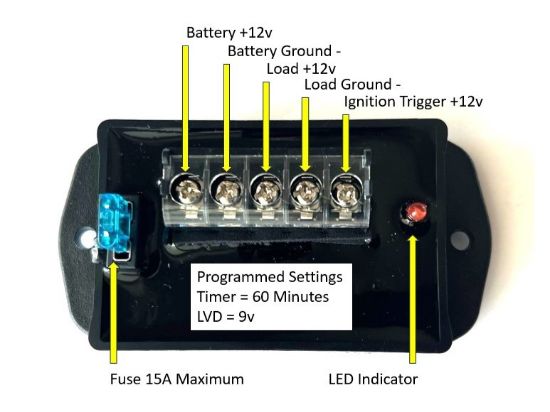

The timer is activated when the ignition is turned ON and has the following features, which are pre-set for the CHP application:

1. Direct connection to the motorcycle battery, with minimal parasitic load (less than .05 mA) when OFF, so the battery will not discharge noticeably when parked - even for long periods.
2. Run-time after ignition OFF preset to 60 minutes.
3. LVD low voltage disconnect protection to save battery from severe discharge. The timer is programmed to shut-down when the voltage drops below 9v (CHP Preset) for more than 30 seconds regardless of remaining run-time, so that battery is not deep discharged which can otherwise permanently damage the battery.
4. An LED indicator shows steady when IGN ON, blinks slowly after ignition-OFF to indicate run-time count-down function.
5. LED fast flashing indicates overload / self-protection mode.  Trips when 19A is exceeded / resets when overload is removed.
6. The battery power line is fused directly up to a maximum of 15A.
7. The timer can be secured with screws through the holes provided (3.5" on center), or by using high quality Velcro.
8. The timer is potted to protect from weather, vibration and shock.
9. Made in USA exclusively for FMS Solutions, LLC
