Weapon Mounts

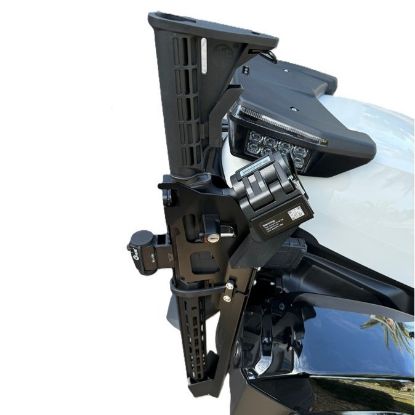

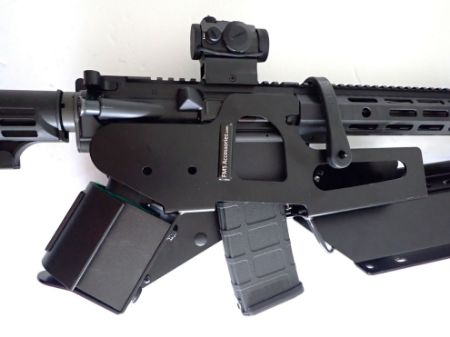

FMS Accessories offer the rifle mount developed by BMW for use on the 2015+ R 1200/1250 RT-P models. The rifle mount features an adjustable barrel support that will accommodate barrel lengths up to 14" with standard mounts and up to 18" with the RH Long mounting bracket. These lengths include overall barrel length including suppressor if appropriate. The mount comes complete with a Santa Cruz Gunlocks shielded SC-1 lock with CA round key, new anti-magnetic lock shield built into rifle mount, shielded black wiring harness terminated for the BMW gun lock release plug, mounting hardware and instructions. New lower support variants are available with integrated sight shield, no sight shield, offered with standard muzzle cup or large muzzle cup for use with suppressors. Large muzzle cup can accommodate a suppressor with an OD up to 1 7/8" (1.875"). New super-cool lower support with integrated small heat shield + std. muzzle cup for std. mounts + can be used on long rifle mounts with barrel length up to 14". Note: A mounting bracket must be purchased separately for Std. RH, RH Long or Std. LH mounting orientation. When mounting long barrel rifles on RH side, we suggest ordering the heat shield to protect the muzzle cup or lower support with integrated heat shield. Note: For 2019+ F-Series models, request 25" gun lock cable in Instruction box.

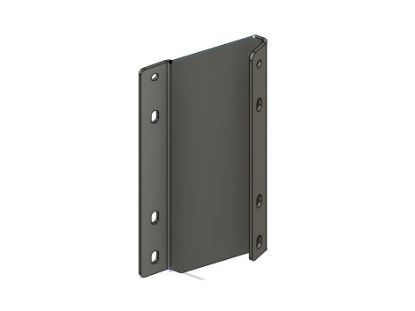

The rifle mount requires a mounting bracket. Theses brackets are available for right or left side mounting. Though right side is normally the preferred side as it is the dismount side, a left side bracket is also available. Standard RH or LH brackets accommodate barrel lengths up to 14". The RH Long Rifle Mounting bracket accommodates barrel lengths up to 18" (note length includes barrel + suppressor if equipped). Note that using the Long Rifle Mounting bracket raises the rifle stock above the radio box lid height and may partially obstruct the RH side rear pod emergency light, depending upon view angle. Note when using RH long rifle mount w/long barrels, we suggest ordering the heat shield to protect the muzzle cup from excessive exhaust heat. LASO Bracket is a RH bracket, elevated similar to the RH Long, but for SBR rifles where no additional mount is required for the lower support. Use together with lower support / Std. muzzle cup w/heat shield. Formerly BMW PN 71 60 2 452 840 RH

FMS Accessories vertical shotgun mount developed by BMW and optimized for use on the 2015+ R 1200/1250 RT-P models. The shotgun mount features an adjustable barrel support that will accommodate barrel lengths up to 14". The mount comes complete with a Santa Cruz Gunlocks SC-1 lock, wiring harness terminated for the BMW gun lock release plug, two-positions for elastic strap to prevent small movements, mounting hardware and instructions. The lower support is now indexed to enable the shotgun to be mounted in the traditional position (grip forward) or reversed, by relocating the muzzle plug. Note in the optional orientation, the magazine entry is not covered. Note: A Std. RH mounting bracket must be purchased separately - See Related Products below.

FMS Rifle mounts produced from 06/2023 will incorporate pre-drilled holes to mount the optional helmet lock. Lock comes complete with unique pair of keys as well as special T30 Counter-sunk SS bolts for mounting. Blue Loctite is required when assembling lock to mount.

FMS has created a rifle heat shield to deflect the exhaust heat when your rifle mount is adjusted where the muzzle cup is directly in line with the exhaust from the muffler. Examples have been reported where the plastic dip coating on the muzzle cup melts-off. This new heat shield should prevent that. Most typically needed for RH long rifle mounts where the muzzle tip is directly in-line with the exhaust outlet.

Now In Stock! FMS has created a rifle cover that is easily removed for fast access to your rifle. Agencies have requested a cover designed to make exterior mounted rifles look less threatening to the general public and provides some dust and water protection at the same time. The cover, made of rugged 1,000 denier ballistic nylon, is attached with two Velcro straps. The handy loop at the top makes removal quick by detaching the two Velcro straps and lifting the cover off the rifle. The cover was designed to fit rifles with carry handles / smaller optics. Note that the cover only extends down to cover the forearm to avoid issues related to exhaust heat.

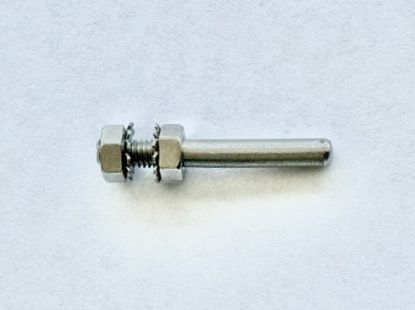

Replacement pin for AR15 models with Torx security screw to prevent unitended removal of the pin while in a rifle mount. Rifle mounts do not change the factory recommended load limits of the motorcycle.

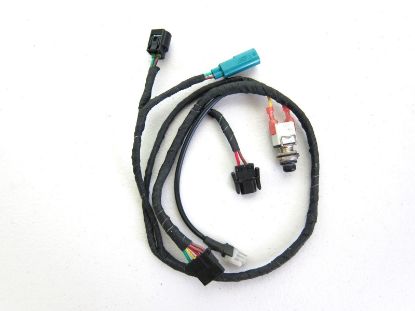

Harness to add a second gun lock release to the weapon system. As used by LAPD, which uses K&L connectors on their rifle racks. This harness requires the addition of the SC-7009-A lock release timer. Formerly BMW PN 71 60 2 452 877 A second version has been created with BMW connectors to accommodate the FMS or BMW rifle mount for use by non-LAPD agencies. Select the desired version in the drop-down box.

The Santa Cruz adjustable (7-40 seconds) gun lock timer is only used when a secondary release button is added to the motorcycle. The standard gun lock release button on the handlebar already has a 30 second hold feature from the vehicle body controller. Formerly BMW PN 71 60 2 452 895

Replacement Part: The Santa Cruz SC-1 gun lock is one of the most popular locks on the market today and used on all of the weapons mounts sold by FMS Accessories. The SC-1 now features the round barrel key lock along with reinforced electric lock release and is standard on all weapon mounts sold by FMS Accessories. Note that a longer 25" cable is required for 2019+ F-Series models).

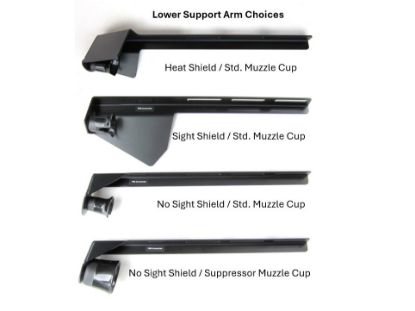

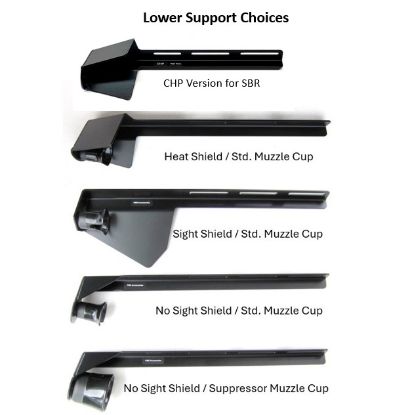

Replacement lower support arms for use on the FMS Accessories rifle mount. Select the lower support arm variant that matches your need. All support arms come with black powder coated finish and the noted muzzle cup installed. Reuse the mounting hardware from the existing rifle mount. Standard length of 17.5". Note: Special CHP 14" Support Arm not in photo.

Replacement muzzle cup for the BMW M4 Combat rifle mount. Utilizes stainless steel hardware to reduce corrosion. Offered in standard or suppressor size - pick from drop-down list. Rifle mounts do not change the factory recommended load limits of the motorcycle.

Replacement muzzle plug for the BMW shotgun mount. Weapon mounts do not change the factory recommended load limits of the motorcycle.

Replacement rubber retaining strap for the BMW M4 Combat rifle mount and most recent FMS Shotgun Mount. Weapon mounts do not change the factory recommended load limits of the motorcycle.

Replacement rubber retaining strap for the Classic BMW Shotgun Mount (older version) that uses a BMW battery retainer strap. Shotgun mounts do not change the factory recommended load limits of the motorcycle.

Replacement CA barrel key #10001 for SC-1 gun locks. Orders will not be processed without an emailed letter from the agency authorizing the purchase. Email letter of authorization to: info@fmsaccessories.com

Replacement solenoid for Santa Cruz SC-1 Gunlock. Rifle mounts do not change the factory recommended load limits of the motorcycle.
