2.5mm BMW Pins & Sockets

$8.00

Sourcing specialized electrical connections is not always easy, particularly when you only need a small number of items. FMS Accessories now offers a selection of hard-to-find connection parts to assist with the installation of police accessories or repair of police motors. If you do not find the item you are looking for, please contact us at info@fmsaccessories.com with a description and photograph of what you are looking for. The 2.5 mm connectors are used by BMW for higher amperage loads such as radios and major power cable distribution. In most applications, these connections are not sealed, as they are utilized in compartments that are already weather-resistant.

Terminal Type

Qty:

Add To Estimate

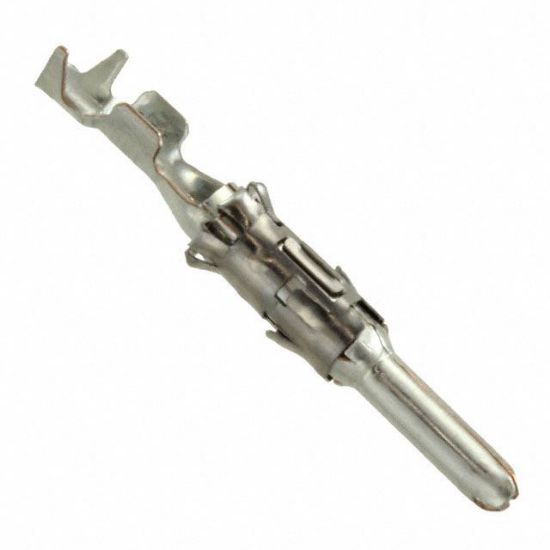

The 2.5 mm Pins are used to connect printer cables to the pin housing used by the lighter socket in the radio box. When Laptop Pivot mounting is used and terminal mounting bracket removed, use the lighter socket connection for powering the Brother PocketJet printer directly with no power converter. If you have the extraction tool, you can purchase the pins and reuse the white pin housing. If no tool is available, you can purchase the pins with the white (Code B) pin housing.

The 2.5 mm sockets are used primarily at the radio power connection point.

Free shipping is limited to the continental United States.

Shipping charges apply to international shipments.

Customers who bought this item also bought

Radio Power Connection Plug Code A

FMSA-EL-RPP

BMW 2.5 mm high current plug to connect radios and other devices to the radio power plug on your BMW motor. BMW plug Code A (black housing) supplied with two sockets for 14 - 18 AWG wire connections (w/conductor & insulation crimps). Formerly BMW PN 71 60 2 452 887

$10.00

Radio Power Plug Divider

FMSA-EL-RPPD

Split the BMW 2.5 mm high current radio power connection (code A) on your BMW motors into two plugs when you need to use this power source to operate more than one item. Harness is made from high quality components with professional terminal crimps and PVC insulation over wires. BMW 2.5 mm Code A socket and pin housings (black) or Code B pin and socket housings (white). Code B is used to split the lighter socket power feed. Overall length: 5.5 inches Wire size: 16 AWG. New version with dual ATM fuse holders for faster installation of radios individually fused receiver and control head. Code A formerly BMW PN 71 60 2 452 880 Connector: BMW 2.5 mm Radio Power Connection Plug Code A. Note: Order two (2) mating Radio Power Connection Plugs with each Radio Power Plug Divider

$36.00

Radar Connection Plug

FMSA-EL-RCP

The radar connection plug is used to connect accessories (including moving radar) to the four-conductor plug on the radio box terminal strip in position 11, referred in the BMW instructions as Radar Connection on the K52 / 2015 - 2022 R 1200 / 1250 RT-P models. One four-conductor socket housing along with four sockets are provided with each PN quantity selected. Formerly BMW PN 71 60 2 452 849

$9.50

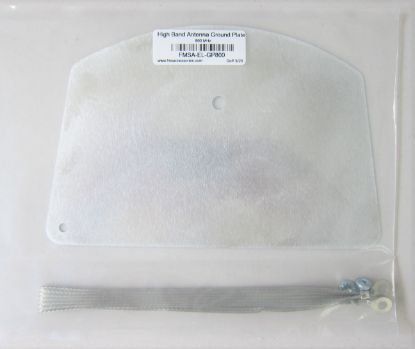

High Band Antenna Ground Plate

FMSA-EL-GP800

High band antenna ground plate provides grounding for 800 MHz antennas mounted on the radio box lid. Plate includes grounding strap w/fastener. Formerly BMW PN 71 60 2 452 882

$39.50
