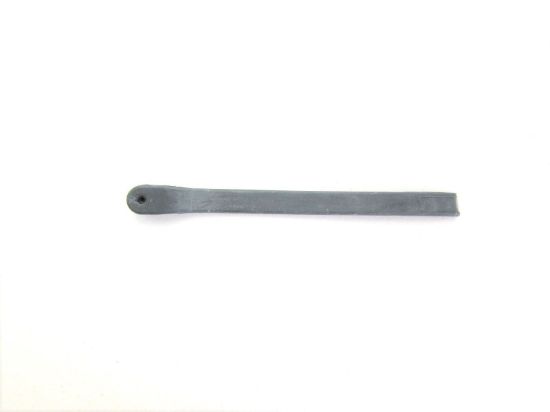

Rifle & Shotgun Mount Strap - Replacement Part

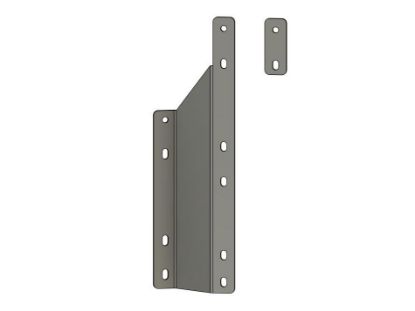

The rifle mount requires a mounting bracket. New R 1300 RT-P bracket for all barrel lengths now listed - RH side only! Though right side is normally the preferred side as it is the dismount side, a left side bracket is also available for specific models. Standard RH or LH brackets accommodate barrel lengths up to 14". The RH Long Rifle Mounting bracket accommodates barrel lengths up to 18" (note length includes barrel + suppressor if equipped). Note that using the Long Rifle Mounting bracket raises the rifle stock above the radio box lid height and may partially obstruct the RH side rear pod emergency light, depending upon view angle. Note when using RH long rifle mount w/long barrels, we suggest ordering the heat shield to protect the muzzle cup from excessive exhaust heat. LASO Bracket is a RH bracket, elevated similar to the RH Long, but for SBR rifles where no additional mount is required for the lower support. Use together with lower support / Std. muzzle cup w/heat shield. The Long rifle cable cover kit is recommended when using the RH Long Rifle Mount.

The FMS Accessories rifle mount has been further modified to work with the new R 1300 RT-P. The new version will also work retroactively with earlier RT-P models back to 2015. The rifle mount features an adjustable barrel support that will accommodate barrel lengths up to 14" with standard mounts and up to 18" with the RH Long mounting bracket. These lengths include overall barrel length including suppressor when fitted. The mount comes complete with a Santa Cruz Gunlocks shielded SC-1 lock with CA round key, new anti-magnetic lock shield built into rifle mount, wire chamber with quick-connect SCGL, black wiring harness terminated for the BMW gun lock release plug, mounting hardware and instructions. New lower support variants are available with integrated sight shield, no sight shield, offered with standard muzzle cup or large muzzle cup for use with suppressors. Large muzzle cup can accommodate a suppressor with an OD up to 1 7/8" (1.875"). New super-cool lower support with integrated small heat shield + std. muzzle cup for std. mounts + can be used on long rifle mounts with barrel length up to 14". Note: A mounting bracket must be purchased separately for Std. RH, RH Long or Std. LH mounting orientation. When mounting long barrel rifles on RH side, we suggest ordering the heat shield to protect the muzzle cup or lower support with integrated heat shield. Note: For 2019+ F-Series models, request 25" gun lock cable in Instruction box.

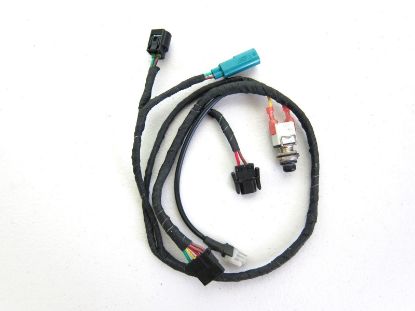

Harness to add a second gun lock release to the weapon system. Specified by several agencies, the harness comes with BMW connectors to accommodate the FMS rifle mount. Note the special version harness for LAPD only, which uses K&L connectors on their weapon mounts. Either harness requires the addition of the SC-7009-A lock release timer. Select the desired version in the drop-down box.

The Santa Cruz adjustable (7-40 seconds) gun lock timer is only used when a secondary release button is added to the motorcycle. The standard gun lock release button on the handlebar already has a 30 second hold feature from the vehicle body controller. Formerly BMW PN 71 60 2 452 895
