Additional LED Lighting

Many agencies wish to add more rear lighting when laptops are used and the radio box lid (with half of your lighting) is opened facing the sky. Adding additional emergency lighting to 2015 and newer R 1200/1250 RT-P models has been a challenge as the flasher board system capacity is limited to the full complement of lighting available from BMW and does not respond well to additional loads. The Emergency Light Multiplier (ELM) enables you to add up to 12 additional LED emergency lights! The harness for lights #1 & #2 are included in the ELM wiring harness. After selecting the ELM module, move to lighting to select the lights you wish the ELM to control such as the NEW Feniex Fusion LED lights.

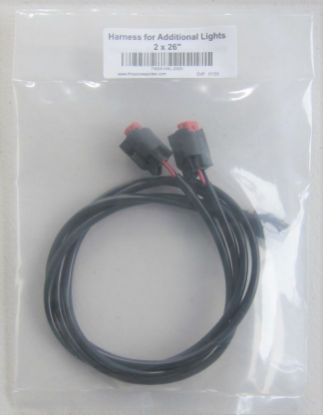

An additional harness can be connected to the Emergency Light Multiplier module harness for more emergency lights. The ELM harness is standard with leads for two added lights. If more are desired, a plug exists (Additional EL Connections) to connect a harness that adds either two or four more lights. The additional harnesses are available in 26" or 36" lengths. Select from the drop down menu. Only one optional harness (2x or 4x) can be plugged into the main ELM harness. Note: New four lead harness with 2 x 30" and 2 x 60" for additional front and rear side emergency lights. Note: New 60" "extension cord" harnesses to extend existing harnesses. New "extension cord" harnesses have special BMW waterproof connectors at both ends! New Adapter now available to direct-connect a second BMW/Code 3 Duplex LED Light to the ELM module. Free shipping is limited to the continental United States. Shipping charges apply to international shipments.

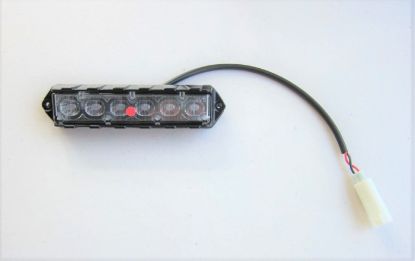

NEW!! Feniex Fusion S Emergency Lights: FMS Accessories is pleased to offer a new model of the Feniex Fusion S light which features six LED's that generate an excellent light output with a 40 degree view angle and offer extraordinary value for money. The new light is a non-flashing single-color version, so there is no flutter when used in cruise light mode. Used in combination with the Emergency Light Multiplier (available separately), lights are provided with black aluminum mounting frames, PVC wire protection and BMW waterproof terminal connections already installed. Available in Red, Blue or Amber, the lights can be mounted on the FMS Accessories license plate bracket, FMS Accessories rear antenna mount bracket, FMS Accessories rear side brackets, or surface mounted on the back / side of saddlebags, side of radio box, etc. Lights include a five-year warranty from Feniex Industries for this application. Order Fusion S light mounts separately below in Related Products.

Emergency light license plate mounting brackets are available for all three styles of auxiliary emergency lights sold by FMS Accessories. These plates are cut and formed steel with black powder coating, along with the appropriate stainless steel mounting screws, washers and Nylock nuts for the specified light model.

Surface mount kit contains four longer stainless steel mounting bolts, nuts and washers along with two grommets for plug exit from saddlebag / other case mounts.

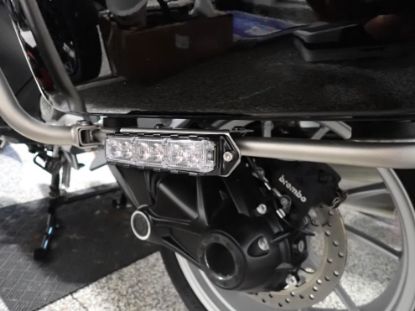

Rear side emergency light mounting brackets are available for the Feniex Fusion auxiliary emergency lights sold by FMS Accessories. These plates are cut and formed stainless steel along with the appropriate stainless steel mounting screws, washers, rivets and Nylock nuts. The lights can be positioned either side facing or rear facing if desired. Feniex Fusion lights purchased separately. Note: Mounts contain a LH and RH bracket (pair) with hardware.

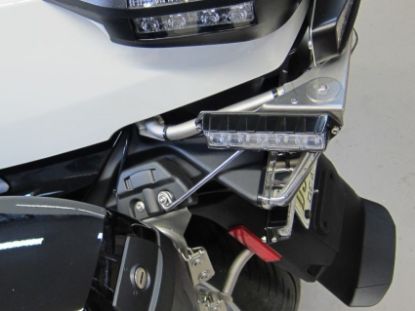

Agencies have commented that the antenna mount can "bounce", particularly when additional items are attached to it such as antennas, low band antenna (boomerang) mounts, additional emergency lights, etc. The Antenna Mount Support Struts provide stability to the antenna mount, reducing stress and eliminating the "bounce". Installation is easy using standard tools. The struts are five-axis formed from 0.187" stainless steel wire with stainless steel hardware and special aluminum stepped spacer. Free shipping is limited to the continental United States. Shipping charges apply to international shipments.

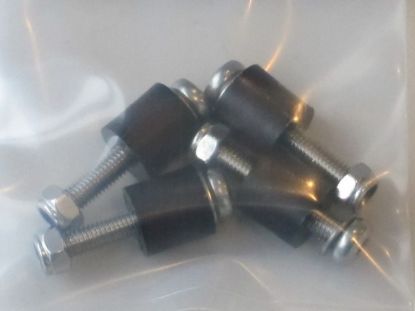

Spacers and bolts to space license plate emergency light mounting bracket 1/2" to the rear to allow room for assault rifle 30 round magazine when mounted on RH side.

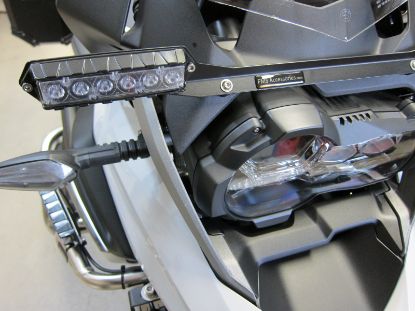

Replacement emergency light mounting bracket for the front of R 1200 / 1250 GS models. Includes mounting bolts and spacers.

Replacement emergency light mounting bracket for the front of R 1200 / 1250 GS model hand guards. Includes mounting rivets and back-up plates. Sold individually as replacement parts - not a pair.

Replacement emergency light mounting bracket for the front side of R 1200 / 1250 GS model protection bars - weldable mounts (can be riveted). Includes light mounting hardware. Sold individually as replacement parts - not a pair.

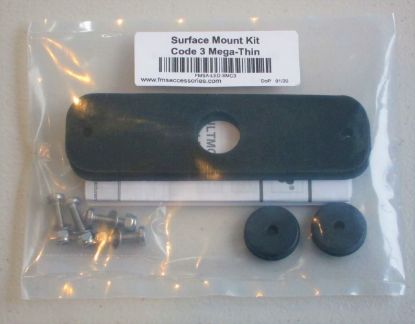

Surface mount kit contains four longer stainless steel mounting bolts, nuts and washers along with surface mount gaskets and two grommets for plug exit from saddlebag / other case mounts.

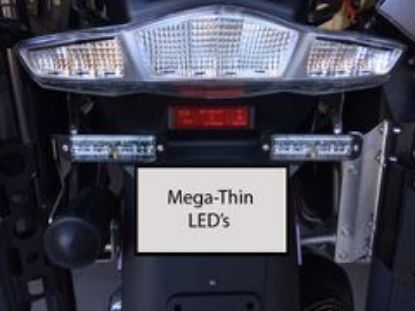

Code 3 Mega-Thin Emergency Lights: These lights feature six LED's that generate an excellent light output along with a very flat mounting profile. The light is the smart-head version coded to steady-burn, so there is some flutter when used in cruise light mode. Lights come pre-programmed to steady-burn mode along with BMW waterproof terminal connections already installed. Available in standard colors, the lights can be mounted on the FMS Accessories license plate bracket or surface mounted on the back of saddlebags, side of radio box, etc.

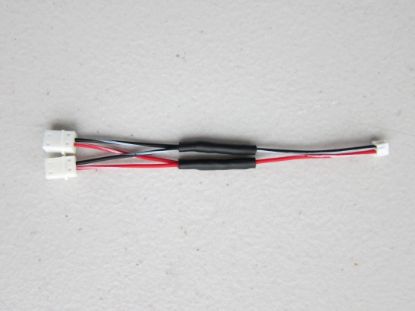

"Y" Harness for BMW ID lights in rear pod. Enables adding license plate ID lights by powering both rear pod ID lights from one flasher board output, enabling the other flash board output to power license plate mounted ID lights. Formerly BMW PN 77 50 2 475 080 (never stocked by BMW). Free shipping is limited to the continental United States. Shipping charges apply to international shipments.

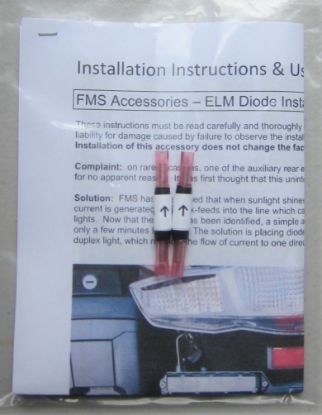

Kit containing two crimp-in diodes to resolve sporadic issues caused by reverse voltage from the BMW rear duplex emergency light. Kit is shipped without cost to agencies that have purchased ELM modules. Contact FMS at info@fmsaccessories.com to request your kit. Free shipping is limited to the continental United States. Shipping charges apply to international shipments.

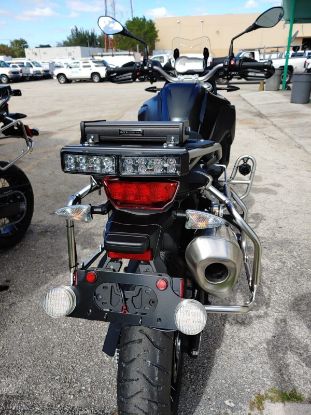

FMS accessories has developed a special rear compartment to contain the BMW / Code 3 emergency light flasher board for use on the F-series GS models from 2019+. The first customer for this new system was Miami-Dade police department in Florida. The rear pack includes a GORE-TEX membrane vent, custom wiring leads, mounts, etc. All parts are black powder coated stainless with stainless steel hardware. Note: This product is a special-order item and requires shipping the rear duplex light and flasher board to FMS Accessories for integration in the kit. Free shipping is limited to the continental United States. Shipping charges apply to international shipments.

The Opticom Control Module enables installers to configure the installation based on department use policy for emitter systems. The OCM provides precise triggering of the emitter modules based on operation of the front emergency lights, regardless of flash pattern. The OCM also provides a selectable manual pause or activation function utilizing the fairing speaker mute switch (speaker mute function then disabled). The unit connects with the side stand to pause when "parked". Indicator light outputs are also provided for either Paused or Activated function using optional indicator lights. The user decides based on preference or department policy. Make selection below regarding activation and indicator light wiring so that unit will be pre-set to those preferences.

Harness for connection of Opticom emitter module, utilizing the fairing speaker mute switch for relay activation of radio plug power source, in-line fuse holder with Opticom rated 7.5A fuse, includes side stand disable signal wire and 60" harness lead with generic connector to Opticom harness.

Replacement / Optional Red LED Indicator for Opticom Module FMSA-EL-OCM.

Available January 2022. TFT dashboard mount for GTT Opticom 795. Bracket is laser-cut mild steel with powder-coating finish. Complete with expanding mounting rivets and special SS Plastite screws for GTT unit. Note: requires drilling four holes in the fairing dashboard - 2021+ R 1250 RT-P models with TFT display.

Tumble-finished stainless steel mounting bracket for the GTT Model 795 emitter module. Mounts to LH front protection bar on 2015+ RT-P models - will work with radar antenna forward mount. Complete with mounting screws and special SS Plastite screws for GTT unit.

Mounting bracket to enable mounting of the Tomar Strobecom II module on the RH side ahead of the Lidar gun holster. Utilizing the mounting bracket also used on the Zebra printer case "forward" mount, the universal base is a solid mount for other accessories. Designed to be used in conjunction with the Lidar gun adapter plate, though can also be used together with the regular FMS Lidar gun holster mounting bracket.
