Emitters

Mount Opticom 795 emitters to the R 1300 RT-P dashboard area. Mount includes four special thread forming screws to secure Opticom unit to mounting bracket.

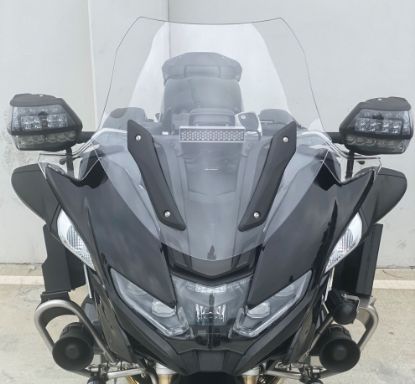

Available January 2022. TFT dashboard mount for GTT Opticom 795. Bracket is laser-cut mild steel with powder-coating finish. Complete with expanding mounting rivets and special SS Plastite screws for GTT unit. Note: requires drilling four holes in the fairing dashboard - 2021+ R 1250 RT-P models with TFT display.

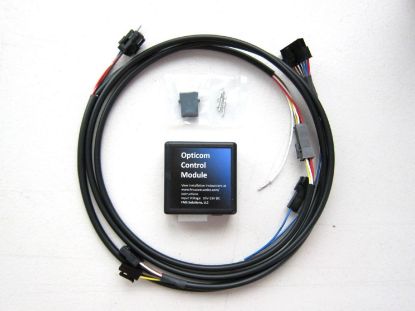

New Firmware Functions! The Opticom Control Module enables riders to activate / pause based on department use policy for emitter systems. The OCM provides precise triggering of the emitter modules based on operation of the front emergency lights, regardless of flash pattern. The OCM also provides the ability to manually either pause or activate the Opticom, utilizing the Flex B switch on KA3, or the fairing speaker mute switch on K52 models. The unit harness has been optimized for the KA3 model and connects with the side stand to pause when "parked". Optional indicator light is suggested to show when the Opticom is ON.

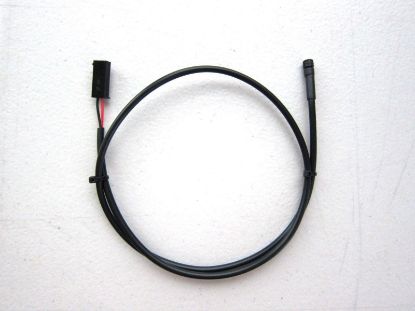

Replacement / Optional Red LED Indicator for Opticom Module FMSA-EL-OCM.

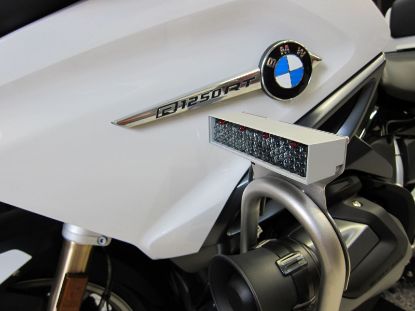

Tumble-finished stainless steel mounting bracket for the GTT Model 795 emitter module. Mounts to LH front protection bar on 2015+ RT-P models - will work with radar antenna forward mount. Complete with mounting screws and special SS Plastite screws for GTT unit.

Mating 8X plug connection for Opticom 795 emitter. Agencies have requested mating connection plugs to their Opticom units to mate with the FMS harness connections. Available with one free-hanging 8X pin housing and 4 pin connectors (only 3 are needed with the FMS system) mating to the factory Opticom plug. Use FMS Crimp Tool FMSA-EL-CTHR or equivalent to crimp the pins to the wire harness.

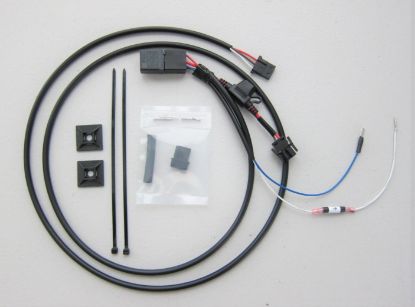

Harness for connection of Opticom emitter module, utilizing the fairing speaker mute switch for relay activation of radio plug power source, in-line fuse holder with Opticom rated 7.5A fuse, includes side stand disable signal wire and 60" harness lead with generic connector to Opticom harness.

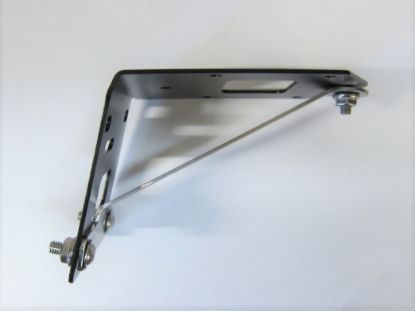

Mounting bracket to enable mounting of the Tomar Strobecom II module on the RH side ahead of the Lidar gun holster. Utilizing the mounting bracket also used on the Zebra printer case "forward" mount, the universal base is a solid mount for other accessories. Designed to be used in conjunction with the Lidar gun adapter plate, though can also be used together with the regular FMS Lidar gun holster mounting bracket.
