Radio Installation

BMW 2.5 mm high current plug to connect radios and other devices to the radio power plug on your BMW motor. BMW plug Code A (black housing) supplied with two sockets for 14 - 18 AWG wire connections (w/conductor & insulation crimps). Formerly BMW PN 71 60 2 452 887

Split the BMW 2.5 mm high current radio power connection (code A) on your BMW motors into two plugs when you need to use this power source to operate more than one item. Harness is made from high quality components with professional terminal crimps and PVC insulation over wires. BMW 2.5 mm Code A socket and pin housings (black) or Code B pin and socket housings (white). Code B is used to split the lighter socket power feed. Overall length: 5.5 inches Wire size: 16 AWG. New version with dual ATM fuse holders for faster installation of radios individually fused receiver and control head. Code A formerly BMW PN 71 60 2 452 880 Connector: BMW 2.5 mm Radio Power Connection Plug Code A. Note: Order two (2) mating Radio Power Connection Plugs with each Radio Power Plug Divider

The radio speaker plug is used to connect radio speaker outputs to the six-conductor plug on the radio box terminal strip in position 12, referred in the BMW instructions as Fairing Speakers. One six conductor socket housings along with six sockets are provided with each PN quantity selected. Formerly BMW PN 71 60 2 452 844

Accessory connection plugs are used to connect accessories to the two-conductor plugs on the radio box terminal strip in positions 8, 9 and 10, referred in the BMW instructions as Accessory I, II or III. Three (3) two conductor socket housings along with six sockets are provided with each PN quantity selected. Formerly BMW PN 71 60 2 452 846

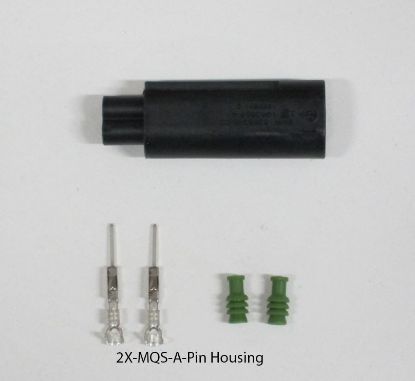

Sourcing specialized electrical connections is not always easy, particularly when you only need a small number of items. FMS Accessories now offers a selection of hard-to-find connection parts to assist with the installation of police accessories or repair of police motors. If you do not find the item you are looking for, please contact us at info@fmsaccessories.com with a description and photograph of what you are looking for. 2-Position Pin Housing Code A is used for radio head extra speaker wire / map light / gun lock connections. 2-Position Pin Housing Code B is used for auxiliary LED light connections. 3-Position Pin Housing Code B is for GPS plug connections.

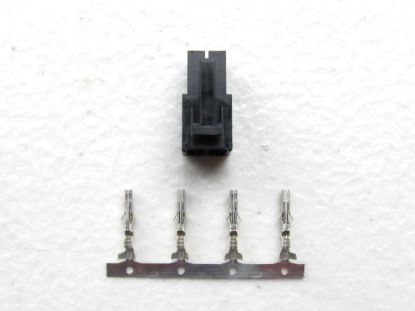

The radar connection plug is used to connect accessories (including moving radar) to the four-conductor plug on the radio box terminal strip in position 11, referred in the BMW instructions as Radar Connection on the K52 / 2015 - 2022 R 1200 / 1250 RT-P models. One four-conductor socket housing along with four sockets are provided with each PN quantity selected. Formerly BMW PN 71 60 2 452 849

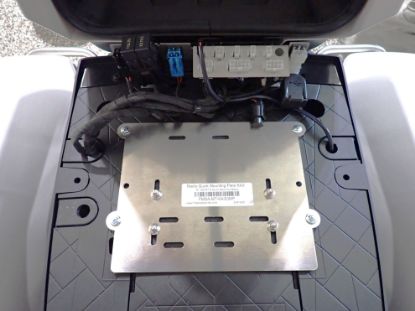

An aluminum plate with slots and corresponding slot bolts that match the patterns in most radio receiver bracket mounting holes. This enables you to loosely mount the radio receiver mounting bracket, move it around until it is where you want it, when tighten it down without removing the radio box floor plate or drilling any holes. Attaches to threaded inserts in the radio box floor. Comes with stainless steel hardware. Formerly BMW PN 71 60 2 408 076 Free shipping is limited to the continental United States. Shipping charges apply to international shipments.

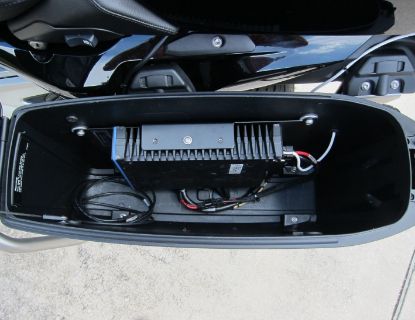

Kit to relocate standard radio receiver, to enable mounting in LH BMW saddlebag, while enabling saddlebag to be utilized for storage of other items. Bracket formed for standard 7" wide radio receivers. Kit includes all mounting hardware (does not include screw for radio receiver chassis) including 12 AWG extension harness for radio power circuit with BMW mating terminals, two special grommets (for radio antenna cable, radio power cable & radio head cable), cable ties and mounting hardware. Made of laser-cut and formed steel with black powder-coating. Requires drilling holes in saddlebag for main radio cable and antenna grommets. Relocating radio receiver to saddlebag does not change the overall vehicle load limits for each saddlebag or radio box. Free shipping is limited to the continental United States. Shipping charges apply to international shipments.

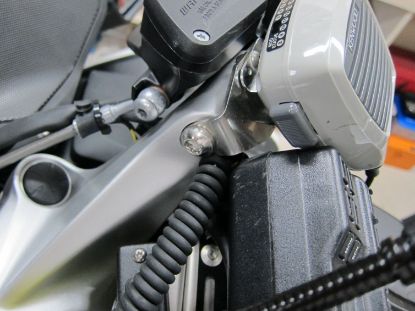

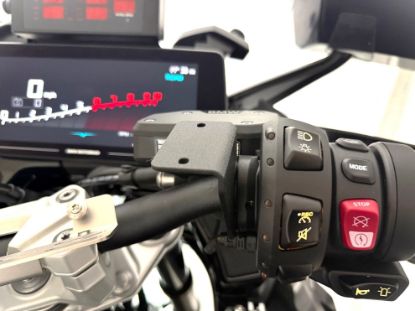

FMS Accessories offers the bracket needed to mount the radio microphone or other accessories to the handlebars on the 2015 - 2022 R 1200 / 1250 RT-P models. A new version is also available that is 1.5" taller / forward off-set to work with radio heads that are mounted higher, where the microphone key could otherwise ride against the radio head. As used by AZ DPS. Note: Requires the special bolt kit listed in related products. Formerly BMW PN: 71 60 2 452 875

FMS Accessories offers the bushing and bolt kit needed to mount various accessories to the handlebars on the K52 / 2015 - 2022 R 1200 / 1250 RT-P including radar remote controllers, microphone mounts, cell phone holders, etc. The kit includes a special aluminum bushing, stainless steel washer and pan-head stainless steel Torx head bolt. The kit is available in standard length as well as +5 mm and +10 mm longer bolts for use when multiple brackets are attached to one side. The M10 Torx head bolt already has encapsulated thread locker on the bolt end - the Torx head enables you to apply the required 40 Nm of torque as specified by BMW without deformation. Formerly BMW PN 71 60 2 452 841

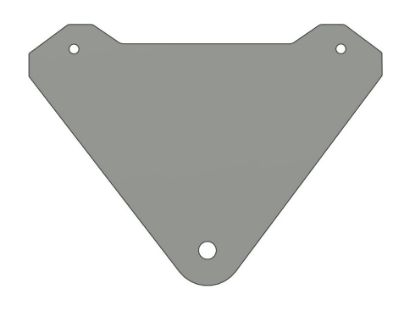

Low band antenna ground plate provides grounding for mid-range antennas from 175 - 480 MHz mounted on the radio antenna mount. Stainless steel plate includes oversized washers, bolts and Nylock nuts. Select correct antenna support bracket from drop-down menu. Note: Photo of MY19+ Shark Fin mount is not accurate. Formerly BMW PN 71 60 2 475 199 MY19+ / 71 60 2 448 421 MY15-18

Agencies have commented that the antenna mount can "bounce", particularly when additional items are attached to it such as antennas, low band antenna (boomerang) mounts, additional emergency lights, etc. The Antenna Mount Support Struts provide stability to the antenna mount, reducing stress and eliminating the "bounce". Installation is easy using standard tools. The struts are five-axis formed from 0.187" stainless steel wire with stainless steel hardware and special aluminum stepped spacer. Free shipping is limited to the continental United States. Shipping charges apply to international shipments.

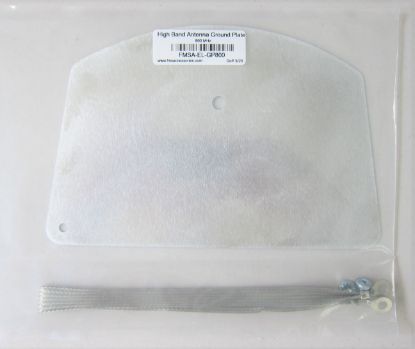

High band antenna ground plate provides grounding for 800 MHz antennas mounted on the radio box lid. Plate includes grounding strap w/fastener. Formerly BMW PN 71 60 2 452 882

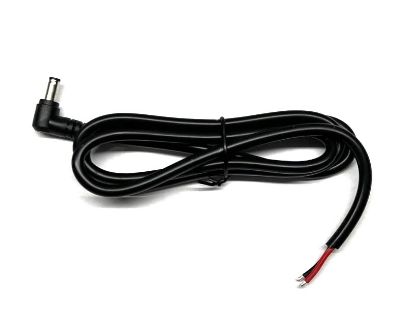

Brother PocketJet printer power cable, for use with BMW 2.5 mm Code B connector to attach Brother Pocket Jet printer power cable to the power plug vacated by the terminal bracket / lighter socket when installing the pivoting laptop / low profile printer housing in BMW motors. Connect your Brother Pocket Jet printer power cable directly to the motorcycle without a power converter. Order Printer Power Plug separately. Note: if you have the tool you can remove the pin housing from the lighter socket and only need to purchase the 2.5 mm BMW pins. Free shipping is limited to the continental United States. Shipping charges apply to international shipments.

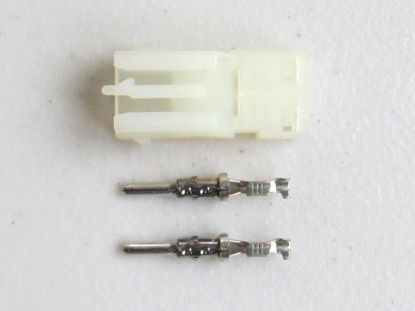

BMW 2.5 mm Code B connector to attach Brother Pocket Jet printer power cable to the power plug vacated by the terminal bracket / lighter socket when installing the pivoting laptop / low profile printer housing in BMW motors. Connect your Brother Pocket Jet printer power cable directly to the motorcycle without a power converter. Includes duplex 2.5 mm pin housing Code B and two 18 AWG 2.5 mm pins. Note: if you have the tool you can remove the pin housing from the lighter socket and only need to purchase the 2.5 mm BMW pins. Free shipping is limited to the continental United States. Shipping charges apply to international shipments.

Siren / PA cable kit originally available from BMW for use in bypassing the PA cable inside the wiring harness of MY 2015+ R 1200 RT-P models. Used only for exceptional cases where PA background noise levels are too high from LIN interference in the wiring harness. Later 1200 / 1250 models utilized twisted-pair PA wires in the harness to further reduce background noise making this harness unnecessary. Formerly BMW PN 71 60 2 447 074 or 71 60 2 452 878

The video system icon plug is used to connect the video icon cable from the rear pod flasher board. This enables the user to tap into the 12V icon signal for emergency lights, left & right turn signal and brake light. This is often used to trigger body cameras as well as provide on-screen icons for full video system use. Formerly BMW PN 71 60 2 452 843

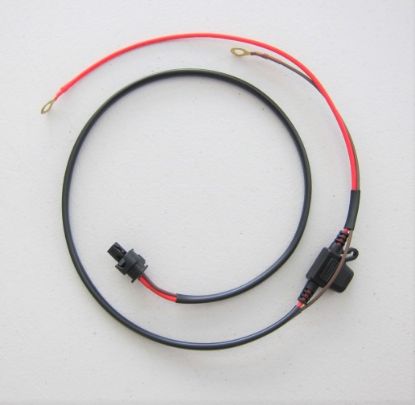

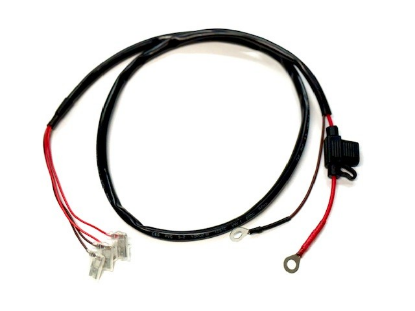

Power your BMW accessory socket directly from the main motorcycle battery with this accessory cable. Fused at 10A (std. power socket is 5A), the cable can be used with heated clothing, etc. Additionally, provides a direct path for battery charging (by-passing the buss system) if the BMW charger is not used (note: direct charging then only charges the main battery and does not close the charging relay to charge the auxiliary battery). Connects directly to main battery (where fuse is located) and runs up to the RH knee panel area for connection to the BMW power socket. Formerly BMW PN 71 60 2 409 958

The FMS LVD Power Center provides a (Low Voltage Disconnect) connection bank for law enforcement / public service vehicles. The 50A Power Center provides separate managed power outlets for all standard authority functions for motorcycle / utility vehicle use. Each power output can be set to be powered either with ignition-ON, or continue to be powered for a specific time after ignition-OFF based on timer duration selected. The timer duration is adjustable in 15-minute increments up to 1.75 hours after ignition-OFF. One fused outlet is provided for direct battery connection (fused, no LVD or timed function), primarily for an external charging port. All other outlets are LVD managed, meaning that if the voltage in the battery(s) that the LVD Power Center is connected to drops below either 9V or 11V (selectable) for more than 30 seconds, the Power Center shuts down to protect the battery(s). Inputs are Bat +, Bat - and IGN. The IGN input is a voltage sensing input, so if no dedicated IGN input is available, you can connect items such as taillight or other accessories that are ON when the IGN is ON. Note that if a (starter) load-shedding power source is used, the non-timer selected outputs will be off when the starter is activated. All outputs have either a selectable ATM fuse (up to 15A) or are load managed circuit, with a variety of load choices. 3-15A outputs (emergency lighting, siren, mobile radio), 7 load managed outputs 1-7A, 2-5A, 2-3A, 2-2A (radar, Set-Com/PVP, PC charger, video, BT amp, etc.) plus the BAT direct connection (suggest 5A for battery charger / power outlet). The 10 outlets that can be time managed are selected via a 1-10 DIP switch. This feature enables you to select the proper output based on load rating, then decide with each output whether you want it time managed or not. Outputs 1-3 are higher-current and use a set-screw wire connection. Outputs 4-10 and BAT use the 2-conductor accessory connection plugs provided (FMSA-EL-ACP).

The FMS LVD Power Timer switches fused battery power to accessories such as radio equipment, emergency light flashers, computers / printers, relay banks, fuse blocks or other accessories that require power starting with IGN ON, then extended after IGN OFF based on preset run-time extensions from 15 min. up to 1.75 hours. Great for authority or civilian applications. The integrated LVD Low Voltage Disconnect protection will cease the timed extension if the battery voltage drops below the preset level (9 or 11 volts) for longer than 30 seconds. The LVD feature preserves the battery from deep discharge / extends battery life. See details below.

Power Management Module is a direct plug & play connection on 2010 through 2014 BMW R 1200 RT-P models (K26MU). The PMM provides a 30 minute timed power extension after ignition-OFF from the radio circuit, activated with ignition power. Two outputs from the PMM include one heavy circuit for radios and a lighter circuit for the helmet headset interface module. Unit includes proprietary BMW connectors. Formerly BMW PN 65 12 2 211 643 Free shipping is limited to the continental United States. Shipping charges apply to international shipments.

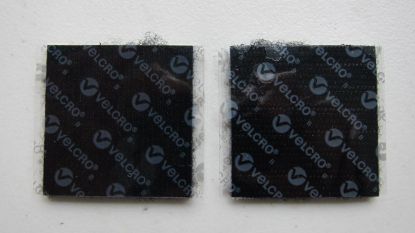

Two sets of 2" x 2" Professional Grade Velcro brand fasteners with special adhesive for use on plastic and in hot environments. This is the same fastener used on the BT Audio Amplifier and Emergency Light Multiplier. Use for mounting radar counter units, LIND PC chargers or other items inside or under the radio box, inside the saddlebags, etc. Free shipping is limited to the continental United States. Shipping charges apply to international shipments.

Mount for CHP low band antenna, complete with support struts and hardware. Note: Warning label is part of Code 3 build kit.
