GPS & Video Mounts

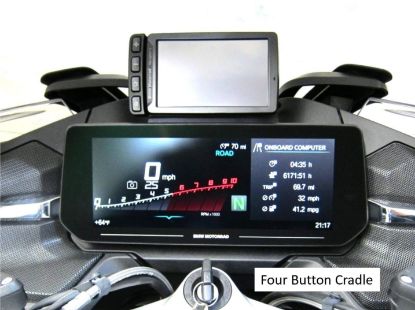

The BMW Navigator mount was designed to enable mounting the traditional BMW Navigator GPS using a BMW Four Button cradle or a BMW Locking cradle (cradles & locks sold separately through BMW) onto the 2021 and later R 1250 RT-P models with TFT display. Also works with Garmin Zumo (select the 4-button cradle for this application). Not compatible with SAT radio antenna - if desired on unit with SAT radio antenna, antenna will need to be relocated* from the dashboard to the rear of the motorcycle for best reception. A new RFI shield has been developed to block much of the RF interference from the TFT display that was affecting the accuracy of the GPS signal (order separately below). Note: It has been reported that the Touratech GPS locking mounting cradle is heavier than the BMW cradles and may cause "bouncing" of the display.

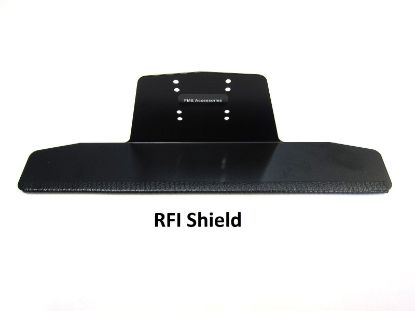

New RFI shield developed to block much of the RF interference from the TFT display that was affecting the accuracy of the GPS signal. Shield is powder coated steel with a blunt edge molding facing the rider. The laser-cut shield has the same bolt hole pattern as the FMS BMW NAV mount and can be used with either BMW cradle or with the Garmin mount.

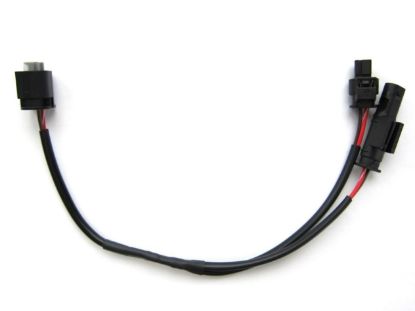

Many riders trying to connect a GPS to the motorcycle have no access to a controlled power supply. One relatively easy access point is the BMW power socket. FMS has created several special "Y" connection harnesses to tap into the BMW power socket, which is a BC controlled power line rated at 5A. Two versions of this connection harness have been created, connection to the BMW Power Socket mounted on the RH knee panel area. Note that removal of the knee panel is required for installation. Additionally, a mating BMW GPS plug is offered for those that have a BMW GPS plug on their motorcycle but need a mating connector for their non-BMW GPS.

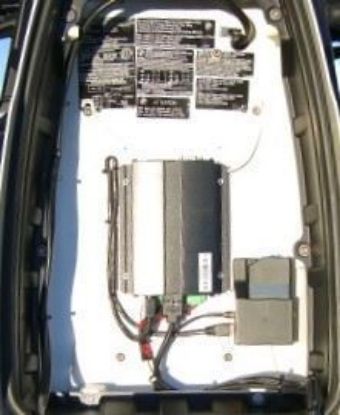

Mounting bracket for the Kustom Road Warrior Video System processor - mounted inside the radio box lid. Fits 2006 - 2014 model RT-P best. Can also be used on 2015+ models with minor adjustment to rear mounting points. Formerly BMW PN 71 60 2 153 832 Free shipping is limited to the continental United States. Shipping charges apply to international shipments.

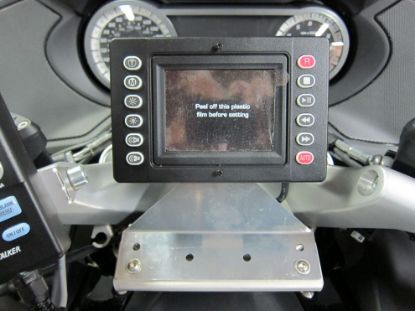

Special bracket to mount Mobile Vision video display at the handlebar radio head mount. Formerly BMW PN 71 60 2 409 959 Free shipping is limited to the continental United States. Shipping charges apply to international shipments.

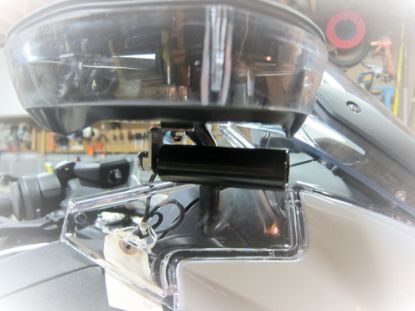

Mount a lipstick camera to the underside of the RH front light pod with this mounting kit. Designed for cameras with 1/4 x 20 TPI end cap threads. (other thread styles will require a bolt supplied with the camera) Formerly BMW PN 71 60 2 407 779 Free shipping is limited to the continental United States. Shipping charges apply to international shipments.

The radar connection plug is used to connect accessories (including moving radar) to the four-conductor plug on the radio box terminal strip in position 11, referred in the BMW instructions as Radar Connection on the K52 / 2015 - 2022 R 1200 / 1250 RT-P models. One four-conductor socket housing along with four sockets are provided with each PN quantity selected. Formerly BMW PN 71 60 2 452 849

The radio speaker plug is used to connect radio speaker outputs to the six-conductor plug on the radio box terminal strip in position 12, referred in the BMW instructions as Fairing Speakers. One six conductor socket housings along with six sockets are provided with each PN quantity selected. Formerly BMW PN 71 60 2 452 844

BMW 2.5 mm high current plug to connect radios and other devices to the radio power plug on your BMW motor. BMW plug Code A (black housing) supplied with two sockets for 14 - 18 AWG wire connections (w/conductor & insulation crimps). Formerly BMW PN 71 60 2 452 887

Accessory connection plugs are used to connect accessories to the two-conductor plugs on the radio box terminal strip in positions 8, 9 and 10, referred in the BMW instructions as Accessory I, II or III. Three (3) two conductor socket housings along with six sockets are provided with each PN quantity selected. Formerly BMW PN 71 60 2 452 846

Helmet headset interface plug 8-position socket housing with 8 sockets, for connection or repair of helmet headset interface wiring. Formerly BMW PN 71 60 2 452 845

The video system icon plug is used to connect the video icon cable from the rear pod flasher board. This enables the user to tap into the 12V icon signal for emergency lights, left & right turn signal and brake light. This is often used to trigger body cameras as well as provide on-screen icons for full video system use. Formerly BMW PN 71 60 2 452 843
